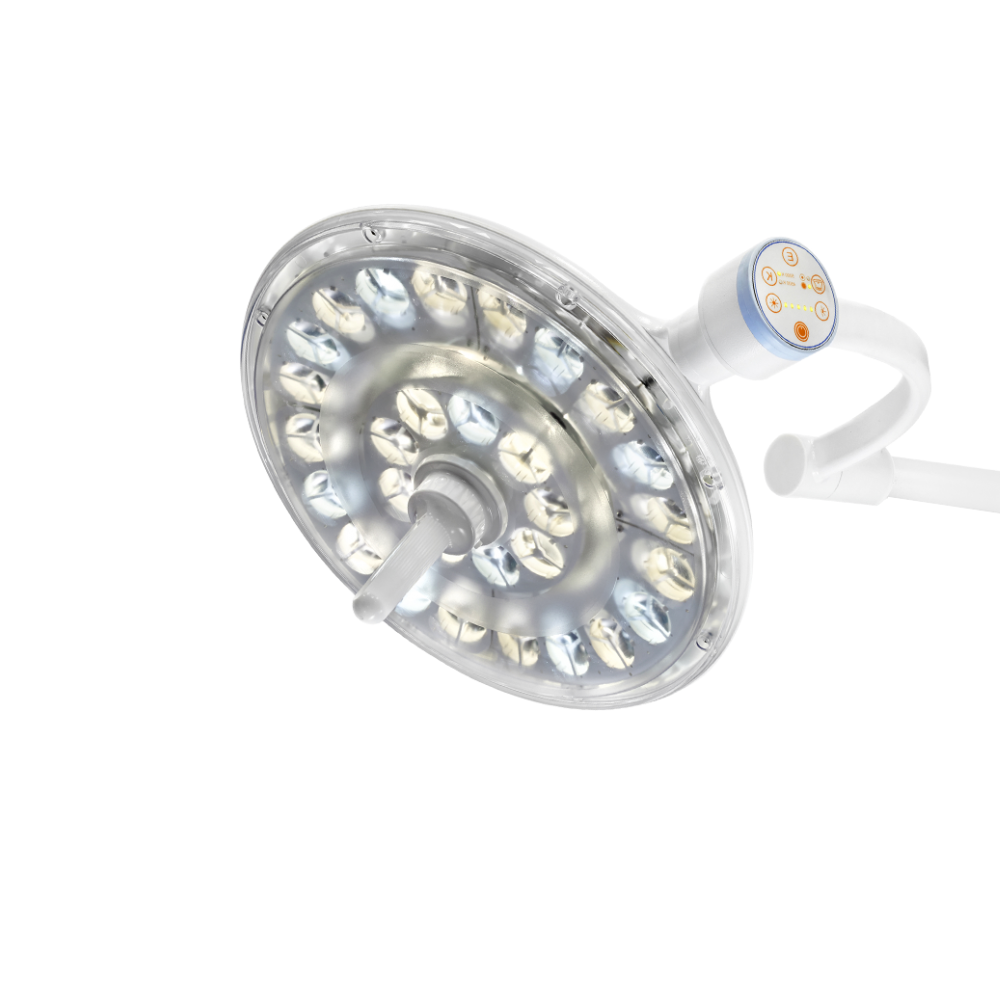

RIMSA U29

U 29
Indirect light, a crucial feature of the U29 Model, provides the surgeon with cold and deep light, without any sort of glare.
Indirect light, a crucial feature of the U29 Model, provides the surgeon with cold and deep light, without any sort of glare.
U29 combines the indirect technology consolidated by the success obtained by the Pentaled Series with the elegant and compact design of Unica. U29 is a high-performance lamp, strongly engineered and comfortably affordable, so that any surgeon can benefit from it.

Light intensity at 1 m distance (Ec)160.000 lux
Light head diameter52 cm
Color temperature2 selections: 4.500 – 5.000K
Color rendering index (CRI)96 Ra
Diameter adjustment28 cm
Depth of illumination IEC 60601-2-41 (L1+L2) at 60%Electronic
d10 light field diameter where illuminance reached 10% of Ec200 mm
Light field diameter adjustable from-to140 – 280 mm
Depth of illumination IEC 60601-2-41 (L1+L2) at 60%500 mm
Depth of illumination IEC 60601-2-41 (L1+L2) at 20%1350 mm
Total radiated energy Ee where the illuminance reaches max level580 W/m2
Ratio between radiated energy Ee and illuminance Ec3,68
Average led life> 60.000 hours
Control of the illuminance20 – 100 %
Electrical absorption50 W – 60 VA

Configurations
U29 + DY1
U29 + U29
U29 + U29 + DY2
U29PI
U29SO
